Jeepless in PA
Joined
·
12,587 Posts
Discussion Starter #1
I installed two of these today (97-02) with fold and tumble seat and (03-05) fold seat without tumble/slide so here are the pictures

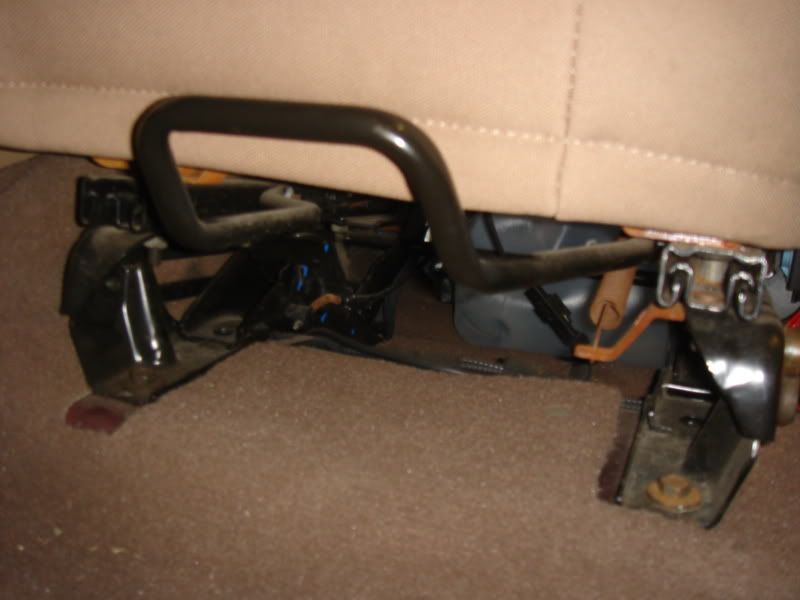

97-02 TJ with fold and tumble seat













03-04 TJ Fold Seat ONLY

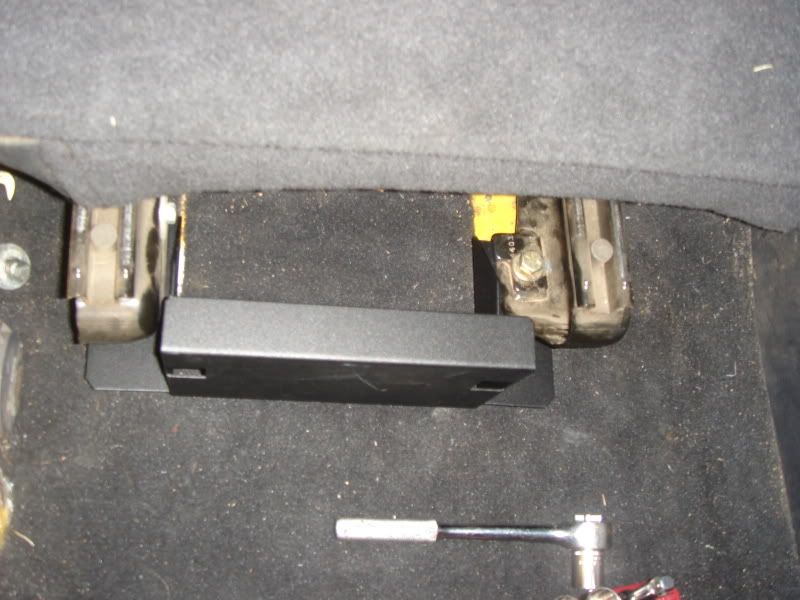

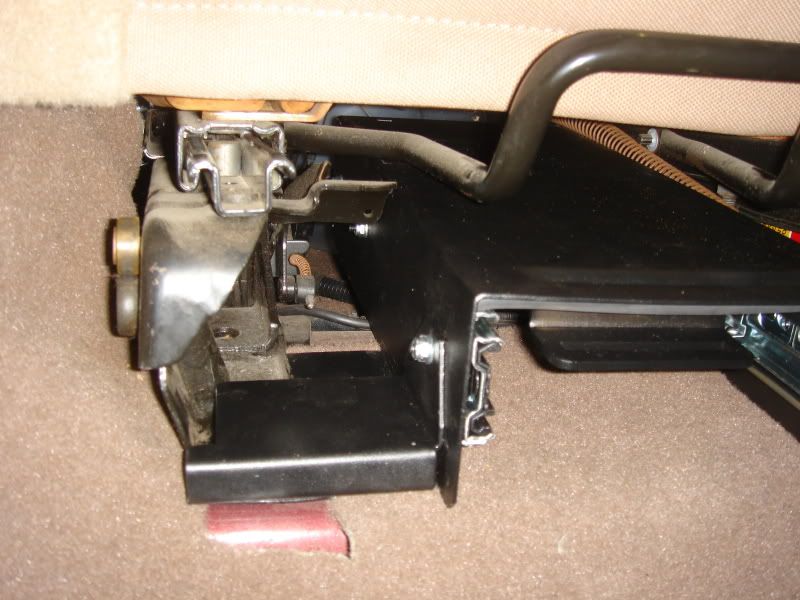

Front drawer bracket

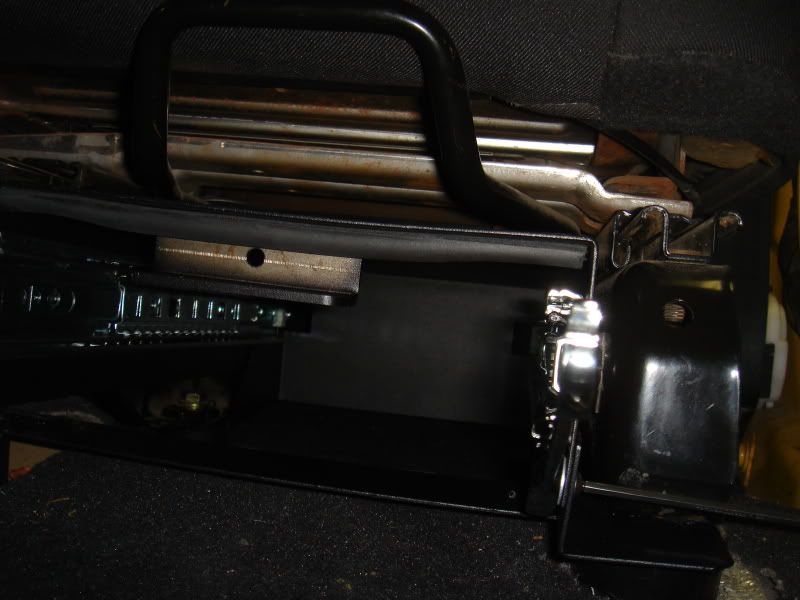

Rear bracket

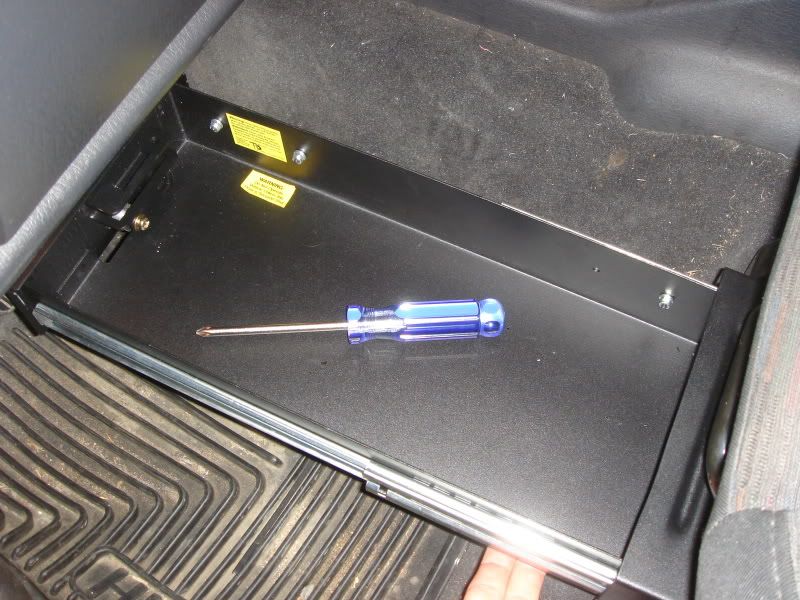

Drawer slid in

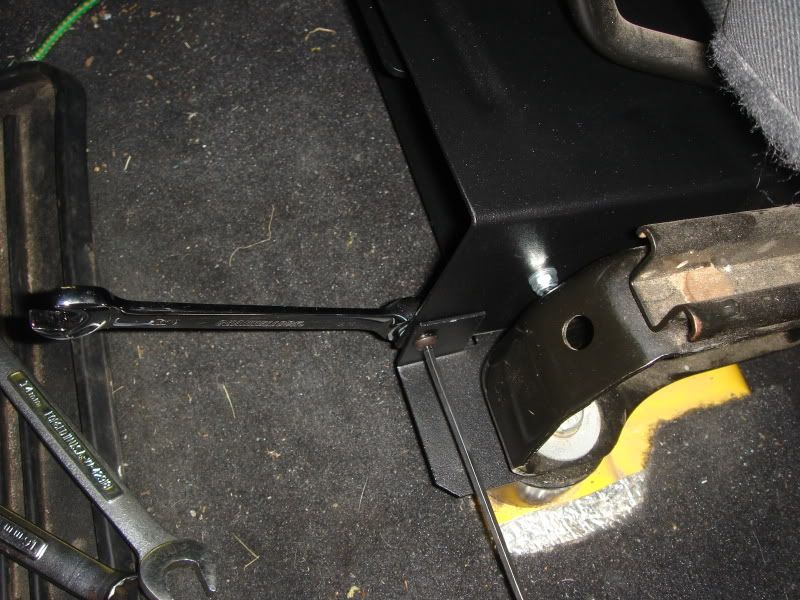

Tighten this bolt at all four corners

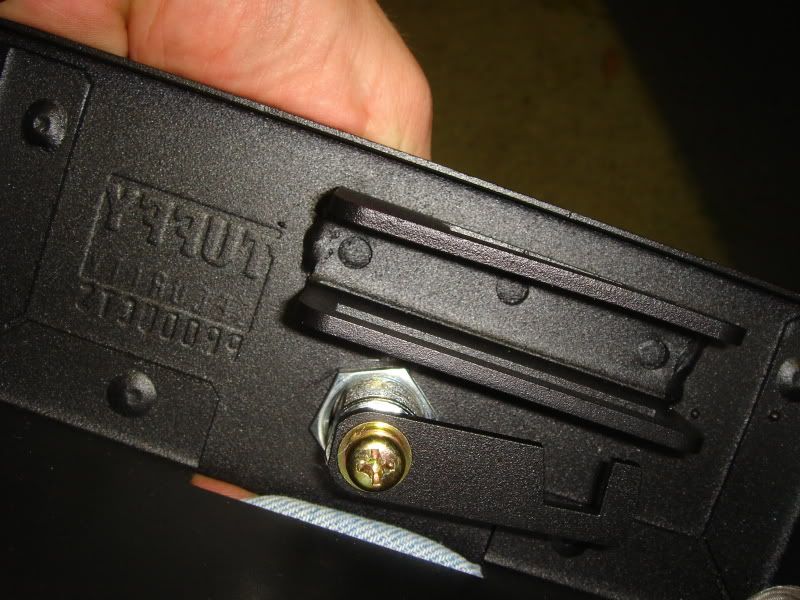

Install this extra










05-06 TJ Fold/Slide/Tumble Seat


TBA, currently in design so 4 weeks, I hope.


·
Premium Member
Joined
·
3,769 Posts
Is your drawer difficult pulling out? Mine is rubbing on the carpet.


·
Jeepless in PA
Joined
·
12,587 Posts
Discussion Starter #3
pghsteel said:
Is your drawer difficult pulling out? Mine is rubbing on the carpet.
My drawer is elevated 1" due to being on top of the seat lift. Did you play with the slotted hole adjustment?

This weekend two more sets are going into an 03 rubi and 04 sport without a seat lift so I will let you know.


·
Premium Member
Joined
·
3,769 Posts
I actually did. It seemed like i couldn't raise the drawer anymore. Ill loosen the bolts tonight and try again.


·
Jeepless in PA
Joined
·
12,587 Posts
Discussion Starter #5
pghsteel said:
I actually did. It seemed like i couldn't raise the drawer anymore. Ill loosen the bolts tonight and try again.

Dave,


I installed the box without the seat lift and there is enough adjustment (vertical) for the box to slide easily with the carpet.
