Recently I received the Minime rock light set of 8 from [email protected] as a Christmas gift so here is a quick install writeup. Everything that you need is included. 8 Lights (have a 2foot lead of 24gauge), Wires, Circuit, 3amp fuse, switch, screws, connectors, solder links, shrinkwrap. These self-tap screws are a little weak so be sure to predrill your holes.


This took about 12 hours including the time spent under the rig trying to find where to hide the wires and the best spot/how to mount the lights.

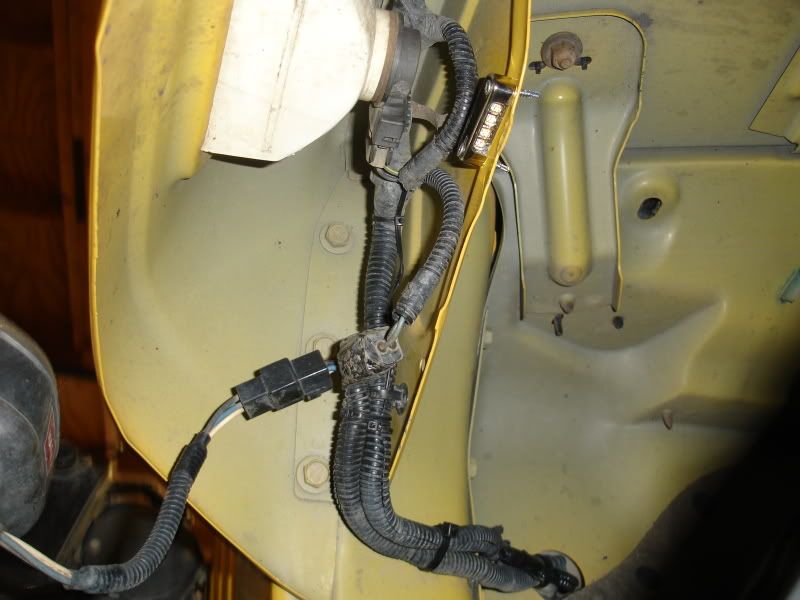

First I started at the driver's side fender and put one light here. (I removed the turn signal to drill the holes) I spliced the end link at the top of the coolant bottle.

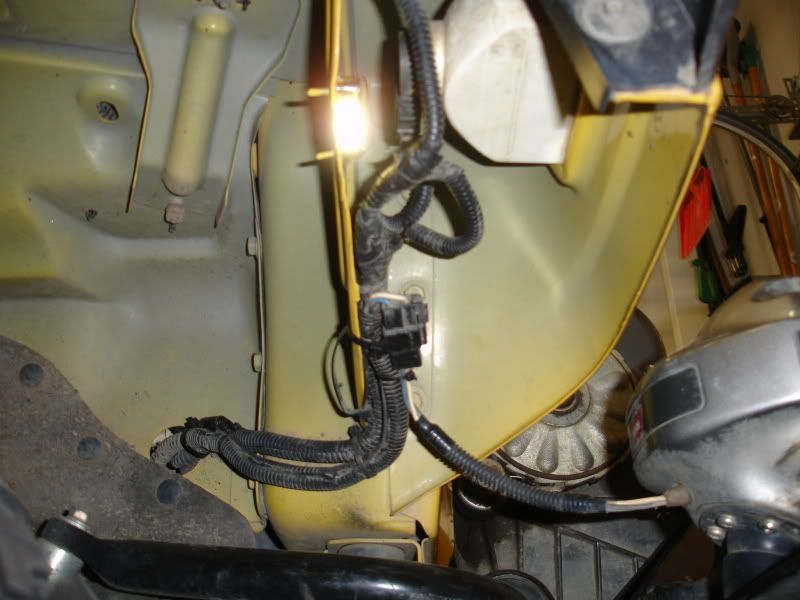

Next I ran the wire in a loom (even though the exterior casing is rated to 220F) and down the bottom of the grill and into the next light on the passenger side. I spliced at the headlight in the engine bay for future maintenance.


The only way to wire these is to cut the cord and use solder links (everything that you need is included with the 35ft 16g wire)

strip back a 1/2" twist


Slide on the solder ring and using a heat gun (paint stripper gun in my case,) keep moving the gun 1 inch away for about 6-7seconds until the ends close and the solder spreads into the twisted cable



Now I reached the hard part of routing the wires. I decided to route it down the battery tray and at the 2nd mount I drilled a hole and pushed the cable through the frame. The other option was to put it in the body cavity that is 6 inches away on the tub's bottom but I still had the problem of getting it out at the rear tire.

Just behind the front tire.


The wire came out an existing hole and I drilled another hole so it went back into the frame to reach the rear.


Exited an existing hole next to the gas tank skid and screwed into the body


Ran the wire over the gas tank skid (free float until I drop the skid for a permanent mount) To the other mounting side.


Ran it along side the frame on the existing gas/vapor lines

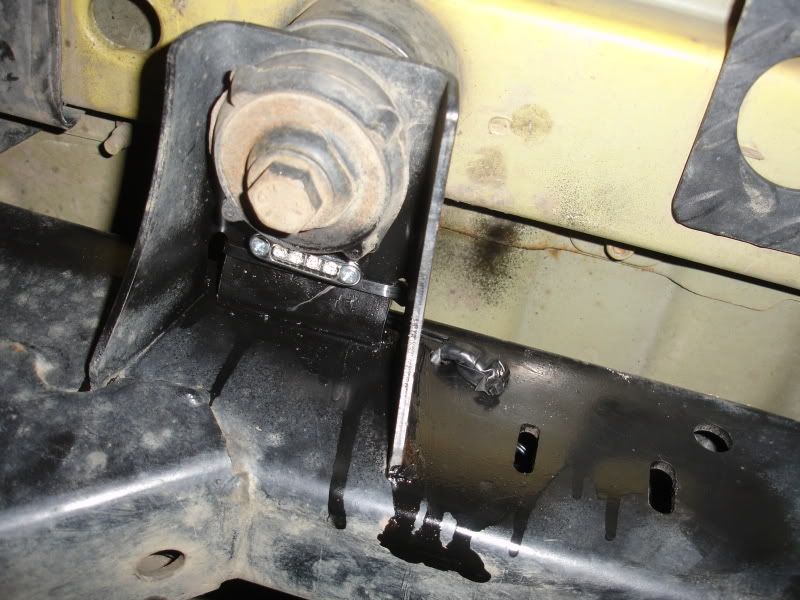

Mount at front of driver rear tire.


Mount behind driver front tire.


Now I only have 4feet left so I ran it up to the grommet and spliced in my own 16g cable to get into the cab.

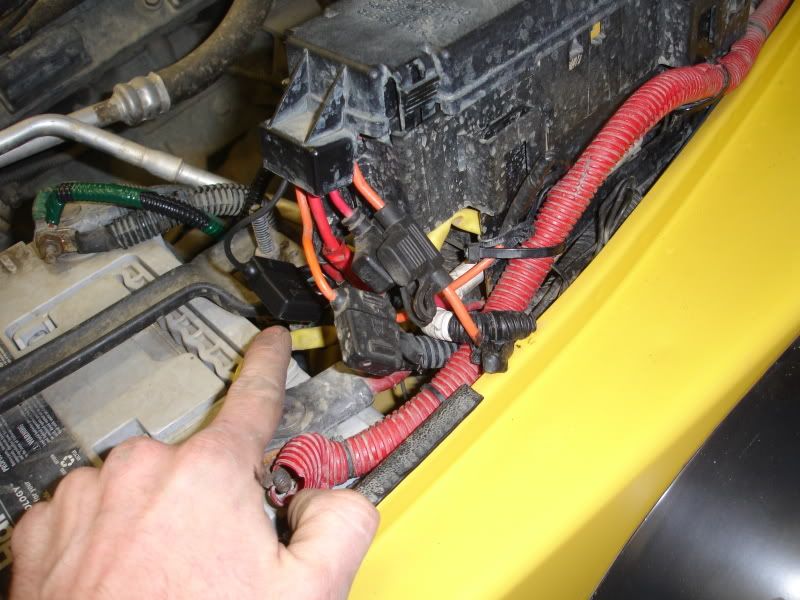

From here I ran the white wire to the switch (the included 35foot wire is black and white in a sheathing,) the black straight to battery, and pulled a hot lead from the aux main into the cab for the switch. Yes, I have a lot of electronics in this rig.


Switch wiring (2 pole with light)
http://www.rubiconownersforum.com/phpbb3/viewtopic.php?f=31&t=72627

This is for constant light on the switch. I reversed the acc/load and power supply wires for the switch's light to turn on only when the lights are on.

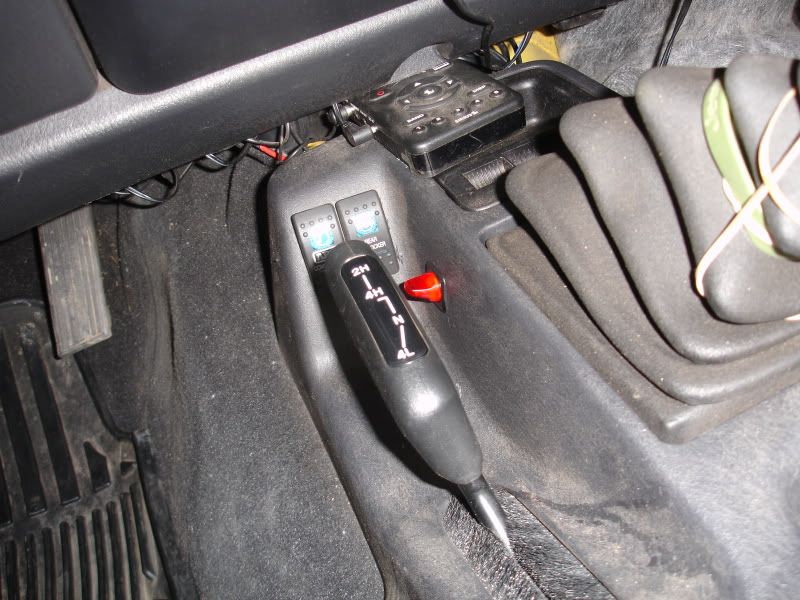

Finished product.







I will try to get pics if they come out right.


·
Premium Member
Joined
·
3,178 Posts
Nice write up Greg!! I wish that I had been as meticulous with the routing of the wires. Did those connectors come with the kit? I think someone mentioned finding them with phone wiring at Lowes but, I have been unable to even find the phone section at mine. :laugh:


·
Jeepless in PA
Joined
·
12,587 Posts
Discussion Starter #4
f9k9 said:
Nice write up Greg!! I wish that I had been as meticulous with the routing of the wires. Did those connectors come with the kit? I think someone mentioned finding them with phone wiring at Lowes but, I have been unable to even find the phone section at mine. :laugh:

The kit came with a cheaper connection so I used a different style. I prefer these that I picked up from Home Depot for $4 since the ends have a blue ring that seals at a lower temperature. This keeps the lead in the center from blowing out the side and burning an eye lid. Lead hurts a little bit. :D


·
Premium Member
Joined
·
3,769 Posts
Clean your interior!!!!
:D


·
Premium Member
Joined
·
3,178 Posts
pghsteel said:
Clean your interior!!!!
:D
Hey, at least, he still has his carpeting in there. :laugh:


·
Premium Member
Joined
·
5,582 Posts
Great Job, looks good. That's almost exactly how and where I put mine as well. A couple questions-you say the kit came with a "cheaper" connector-what kind? Mine came with heat shrink solder style that melt with heat that work very well. I bought extras locally to have on hand for trailer building and they were NOT cheap by any means. You say that kit you got for 14 was only $4.00 from Home Depot? Damn-I'll have to go look as I have been using a lot of those lately and the "discounted" price I"m paying is a heck of a lot more than that.

My Jeeps has been done for a while and I have a set ready for the trailer as well. I do need a few more though so when funds are here, will likely be ordering a few more. They're a great all around light.

Oh-if your interior is diry and needs clean, I am NOT posting pics of mine!!! :oops: :rotflmao:

Best of Luck,

Mike


·
Jeepless in PA
Joined
·
12,587 Posts
Discussion Starter #9
[quote='05TJLWBRUBY]Great Job, looks good. That's almost exactly how and where I put mine as well. A couple questions-you say the kit came with a "cheaper" connector-what kind? Mine came with heat shrink solder style that melt with heat that work very well. [/quote]


These (heat shrink connectors) do work, but not as well as the Tyco brand that are pictures above. The tyco create a better seal due to the quicker melting plastic on both ends and I have not had the lead shoot out and burn my eye lid. :)

The red ring is the first to melt before the clear plastic ends start collapsing then the lead core takes over and fills in between those rings.


Are the ones included in the kit cheaper? Probably.


You say that kit you got for 14 was only $4.00 from Home Depot? Damn-I'll have to go look as I have been using a lot of those lately and the "discounted" price I"m paying is a heck of a lot more than that.
Look in the telephone section with the crimpers/wall plates.


·
Premium Member
Joined
·
3,769 Posts
I've never seen those connectors before. I'll have to pick up a pack next time at home depot just to have. Would a torch work to seal these If I didn't get the flame too close to the plastic.


·
Jeepless in PA
Joined
·
12,587 Posts
Discussion Starter #11

·
Premium Member
Joined
·
2,931 Posts
Greg, You should have Josh send you a controlfreak to clean up the wiring jumble.. I have one, makes a world of difference.

great write up.


·
Jeepless in PA
Joined
·
12,587 Posts
Discussion Starter #13
Eric said:
Greg, You should have Josh send you a controlfreak to clean up the wiring jumble.. I have one, makes a world of difference.

great write up.
But then I will not know where all the wires go. :D


Na, I have something similar that is an octopus with 8 links from a late model crown vic. Write up to follow


·
Premium Member
Joined
·
5,582 Posts
Thanks for the info-I'll go check for those at H.D. in the next few days. Do you know off hand if they make the same style with the small ring terminals? I'll look for them too-I'll be needing a TON Of them here real soon...

I have a little micro torch or whatever they're called from Cabelas that I keep in my hunting pack all the time. I used it to do the wiring with my lights and on all of my trailer stuff. I adjust the flame to blue, keep it a short distance away and it's enough to melt the plastic good and the solder both-I just be careful when and how much heat I apply to it. If you watch closely, you can see it starting to melt so it's easy to pay attention to. Standard orange flame will work, but takes WAY longer and I never get as good a results with that-usually end up getting impatient and burning things. The blue flame from the torch works great for me. Again, this is one of the little hand torches that run on butane fuel. Some cooks use them too in the kitchens for fancy dishes of stuff that I can't even begin to tell you what it is. My mom has made some good deserts and things with it. I was just impressed she had one! :laugh: Someday a table top heat gun would be cool to have, but until then, the torch works great for me.

Best of Luck,

Mike


·
Jeepless in PA
Joined
·
12,587 Posts
Discussion Starter #15
[quote='05TJLWBRUBY] Do you know off hand if they make the same style with the small ring terminals? I'll look for them too-I'll be needing a TON Of them here real soon...[/quote]

I have not seen those at HD but on a web search, a few come up under Plasti-Grip


·
Jeepless in PA
Joined
·
12,587 Posts
Discussion Starter #17
eyezlee said:
Any pics of this bad boy all lit up? :D

I'll do that tonight. When I turned these on, they are not as bright as I thought for being an LED (I have a few LED strobes in this rig). Imagine an ecofriendly lightbulb that is still warming up. About 1/2 brightness would be a great similarity.


·
Premium Member
Joined
·
3,178 Posts
My rear most 2 lights are minimes. I love them!



·
Jeepless in PA
Joined
·
12,587 Posts
Discussion Starter #20

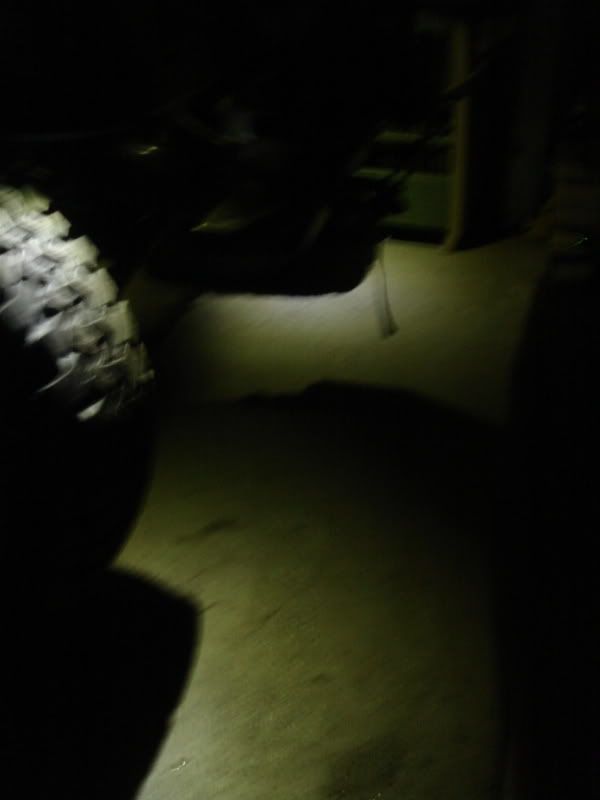

The camera does not really show their brightness:
