Brake clips?

1599 Views 12 Replies 9 Participants Last post by jciocco, Jan 12, 2011

SweetPee

Discussion Starter · Jan 8, 2011

In my 04 parts manual it shows the use of "brake caliper clips" on the front brakes. But my jeep doesn't have them!!! Maybe they were left off some how? I have no clue if they are important or even what they do. I got a hardware kit for my up coming brake job and it includes some new ones which are shown below.

Can any one shed some light on these little things, where they go, what they do, etc :laugh:

See less See more

Save

1 - 13 of 13 Posts

desertfox1

· #2 · Jan 8, 2011

I've never seen anything like that on my front brakes, I have an 04 as well.

I'm sure if my heep had them, I'd have seen them. I've had the calipers, pads and rotors off a few times for cleaning, and don't recall any such device.

Save

jciocco

· #3 · Jan 8, 2011

They show up in the 06 parts manual as well. I just finished upgrading rotors, and pads, and replacing axles in the rear, so I have had the rotors and pads on and off several times in the last month and never saw anything like that.

Save

Eric

· #4 · Jan 8, 2011

looks like a generic anti-rattle clip. keeps the pads tight in the caliper so they dont make noise when no pressure is on the pads

Save

Norminator

· #5 · Jan 9, 2011

Funny you should post this now. I just did all the brakes on my 04 today and didn't see anything like that. All my parts were from Napa and there wasn't anything included like that.

Save

SweetPee

Discussion Starter · #6 · Jan 9, 2011

Well I never seen them on mine either, and I'm the only one that deals with it. So it is obvious they are nothing mandatory.

Eric.... That is what I kind of thought also!

Save

gregert12

· #7 · Jan 9, 2011

That is a dickfer.

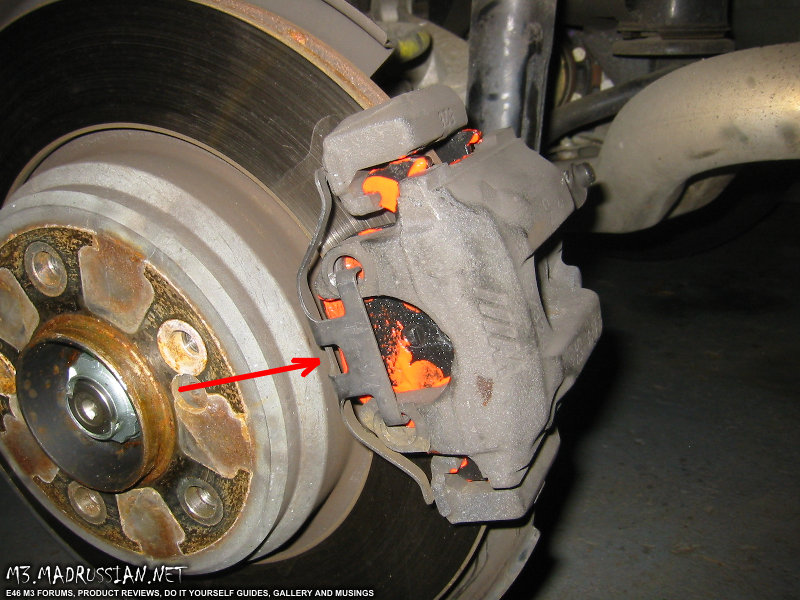

That is really an anti-rattle clip that attaches on the exterior, hub side of the caliper

-edit- an example

See less See more

Save

f9k9

· #8 · Jan 9, 2011

gregert12 said:
That is a dickfer............

opcorn:

This is gonna be good.

Save

SweetPee

Discussion Starter · #9 · Jan 9, 2011

A "dickfer"??? :laugh:

I figured you'd seen some sort of clip like that Greg! Your a regular Internet ninja :laugh: Thanks man, I figured it was a rattle clip, but I had no clue how it would have been put on the caliper. Hummm.... Wonder how much extra horsepower they will give me :rotflmao:

Save

gregert12

· #10 · Jan 9, 2011

SweetPee said:
A "dickfer"??? :laugh:

I figured you'd seen some sort of clip like that Greg! Your a regular Internet ninja :laugh: Thanks man, I figured it was a rattle clip, but I had no clue how it would have been put on the caliper. Hummm.... Wonder how much extra horsepower they will give me :rotflmao:

http://www.youtube.com/watch?v=eB8sG4smWbo

See less See more

Save

1982cj7

· #11 · Jan 9, 2011

those clips are for an earlier YJ or CJ brake setup, the pads go in the mount and are held by the clips, they will not fit on a newer brake because the pads mount to the caliper not the mount. They go on each end of the pads not on the outside like the picture.

Save

Stinger

· #12 · Jan 10, 2011

f9k9 said:
gregert12 said:

That is a dickfer............

Click to expand...

opcorn:

This is gonna be good.

yup

Save

jciocco

· #13 · Jan 12, 2011

No extra horsepower for them it is a 4x4, they will help your breakover angle.

SweetPee said:
A "dickfer"??? :laugh:

I figured you'd seen some sort of clip like that Greg! Your a regular Internet ninja :laugh: Thanks man, I figured it was a rattle clip, but I had no clue how it would have been put on the caliper. Hummm.... Wonder how much extra horsepower they will give me :rotflmao:

Save
